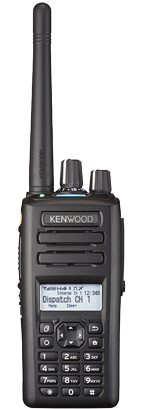

NX-3220E
VHF NEXEDGE/DMR/Analogue Portable Radio with GPS/Bluetooth/Full Keypad (EU Use)
Features
SPECIFICATIONS
SUPPORT
Accessories
Features
| Key Features | |
|---|---|
| Multi-protocol digital radio – designed to operate under an NXDN or DMR digital, and FM analogue protocols | |
| NXDN Conventional and Type-C & Gen2 Trunking | |
| DMR Tier II, DMR Auto Slot Select & Site Roaming | |
| Mixed Digital & FM Analogue Operation allows gradual migration at your own pace | |
| 7-color Light Bar Indicator on the top panel | |
| Built-in GPS Receiver/Antenna for effective fleet management | |
| Built-in Bluetooth for hands-free communication – Applicable Bluetooth profiles: HSP (Headset Profile provided) and SPP (Serial Profile – available as an option) | |
| Renowned KENWOOD Audio Quality can be achieved with Active Noise Reduction (ANR) that utilizes built-in DSP | |
| Software DES and AES Encryptions for NXDN Conventional/Trunking and DMR Conventional protocols | |
| Built-in Motion Sensor (Man-down, Stationary and Motion Detection) | |
| IP54/55/67 and MIL-STD-810 C/D/E/F/G | |
| 4-Line Basic Frame (2-Line Main/Sub-LCD, icon & key guide) / 14 Characters | |
| 5-Line Text Message Frame (3 Lines of Text, icon & key guide) | |
| 4-way Directional-pad (D-pad) for intuitive control and operation |
SPECIFICATIONS
| Supplied With | |
|---|---|
| Belt Clip | |
| Instruction Manual | |
| Screw Set |
| PMR General Features | ||
|---|---|---|
| Yes | Multi-coloured LED | |
| Yes | 2-Tone Signalling | |
| Yes | 5-Tone Signalling (multi-format) | |
| Yes | Battery Saver Mode | |
| Yes | Battery Status Indicator | |
| Yes | Bluetooth Module Built-in | |
| Yes | Busy Channel Lock-out | |
| Yes | Calling Alert | |
| Yes | Character Display (Alphanumeric) | |
| Yes | Compact Design | |
| Yes | Data Mode Operation | |
| Yes | Digital ANI Built-in | |
| Yes | DTMF Function | |
| Yes | Ease of Operating Use | |
| Yes | Embedded Message | |
| Yes | Emergency Call Function | |
| Yes | Emergency Key | |
| Yes | Emergency Advanced Motion Detection Function | |
| Yes | Enhanced Kenwood Audio | |
| Yes | Flash Upgradeable Firmware | |
| Yes | FleetSync | |
| Yes | GPS Built-In | |
| Yes | GPS Compatible | |
| Yes | Illuminated Keys | |
| Yes | Kenwood ESN (Electronic Serial Number) | |
| Yes | Key Beep On/Off | |
| Yes | Key Lock | |
| Yes | Front-panel Control Keys | |
| Yes | Front-panel Keypad | |
| Yes | LCD Display | |
| Yes | Lone Worker Function | |
| Yes | LTR Trunking | |
| Yes | MDC-1200 | |
| Yes | Minimum-Volume Setting | |
| Yes | Man-Down Function | |
| Yes | Monitor Button | |
| Yes | Multiple Scanning Function | |
| Yes | Operator Selectable Tone | |
| Yes | PC Programming & Tuning | |
| Yes | Power-On Message | |
| 23 Programmable Function Keys | Programmable Function Keys | |
| Yes | PTT ID | |
| Yes | QT (CTCSS) / DQT (digital) | |
| Yes | Real Time Clock | |
| Yes | RSSI Level Indicator | |
| Yes | Selectable Microphone Gain | |
| Yes | Switchable Display Backlighting | |
| Yes | Talk Around | |
| Yes | “Talk Back” Scanning Function | |
| Yes | Time-Out Timer | |
| Yes | Transceiver Password | |
| Yes | Voice Inversion Scrambler | |
| Yes | Windows PC Programming and Tuning |
| NEXEDGE Features | ||
|---|---|---|
| Yes | Full details Full details of all the NEXEDGE features available from your Kenwood dealer of all the NEXEDGE features available from your Kenwood dealer | |
| Yes | All Group Call | |
| Yes | AMBE+2 Vocoder | |
| Yes | Broadcast Call (Trunking Mode) | |
| Yes | Emergency Call | |
| Yes | Fail Soft Mode | |
| Yes | Group Call (Trunking Mode) | |
| Yes | Individual Private Call (Trunking Mode) | |
| Yes | Individual Call | |
| Yes | Message Trunked Mode | |
| Yes | NXDN Conventional Included | |
| Yes | NXDN Digital 12.5/6.25kHz Channel Spacing | |
| Yes | NXDN Scrambler Included | |
| Yes | Over-the-air Alias | |
| Yes | Paging Call | |
| Yes | Priority Monitor IDs | |
| Yes | Radio Access Numbers (RAN) | |
| Yes | Remote Group Add (Trunking Mode) | |
| Yes | Remote Monitoring | |
| Yes | Remote Stun/Kill | |
| Yes | Short & Long Data Messages | |
| Yes | Status Messaging | |
| Yes | Transmission Trunked Mode | |
| 128 | Zones |
| DMR Features | ||
|---|---|---|
| Yes | AMBE+2 Vocoder | |
| Yes, – option – | Direct Mode (P2P) | |
| Yes | DMR Tier II | |
| Yes | DMR Site Roaming | |
| Yes | DMR Auto Slot Select | |
| Yes | Individual Call with Acknowledgement | |
| Yes | Single-slot Data Timing | |
| Yes | TDMA 2-slot System Architecture |
| Options | ||
|---|---|---|
| Yes | Choice of Optional Battery Packs | |
| Yes | Choice of Optional Microphones | |
| Yes | DMR Tier 2 Mode |
| Applicable Standards | ||
|---|---|---|
| Yes | For use in the EU | |
| Yes | IP54 | |
| Yes | IP55 | |
| Yes | IP67 | |
| Yes | MIL-STD 810 C/D/E/F/G |
| Technical Specifications | ||
|---|---|---|
| 136 – 174 MHz | Frequency Range | |
| 260 | Number of Channels | |
| 128 | Number of Zones | |
| 25 kHz/20 kHz/12.5 kHz | Channel Spacing – Analogue – Wide/Mid/Narrow | |
| ± 5.0 kHz at 25 kHz ± 4.0 kHz at 20 kHz ± 2.5 kHz at 12.5 kHz | Modulation Limiting – Analogue | |
| 12.5 kHz/6.25 kHz | Channel Spacing – Digital – Wide/Narrow | |
| With KNB-55L: ± 8 h (FDMA) / ± 9.5 h (TDMA) With KNB-56N: ± 8 h (FDMA) / ± 9.0 h (TDMA) With KNB-57L: ± 11 h (FDMA) / ± 13.5 h (TDMA) – 5-5-90 – | Battery Life | |
| ± 2 ppm (-30 °C to + 60 °C) | Frequency Stability | |
| -30 °C to + 60 °C | Operating Temperature Range | |
| 7.5 V DC ± 20% | Operating Voltage | |
| With KNB-55L: 56.0 x 119.6 x 36.4 mm With KNB-56N: 56.0 x 119.6 x 42.7 mm With KNB-57L: 56.0 x 119.6 x 39.0 mm Radio only: 56.0 x 119.6 x 36.4 mm – Projections not included – | Dimensions | |
| With KNB-55L: 315 g With KNB-56N: 410 g With KNB-57L: 340 g Radio only: 220 g | Weight (net) |
| Receiver Specifications |
||
|---|---|---|
| 3% Distortion: 500 mW / 8 Ohms 5% Distortion: 1000 mW / 8 Ohms – Internal Speaker – | Audio Output | |
| 65 dB | Intermodulation | |
| 12.5 kHz: 68 dB 20 kHz: 74 dB 25 kHz: 76 dB | Selectivity (Analogue) | |
| 0.25 µV (12.5/20/25 kHz) | Sensitivity (Analogue) – EIA 12 dB SINAD | |
| 12.5 kHz: -1 db µV (0.45 µV) 20 kHz: -3 db µV (0.35 µV) 25 kHz: -3 db µV (0.35 µV) | Sensitivity (Analogue) – EN 20 dB SINAD | |
| NXDN: 12.5 kHz = 0.25 µV at 3% BER NXDN: 6.25 kHz = 0.20 µV at 3% BER NXDN: 12.5 kHz = -1 dB µV (0.45 µV) at 1% BER NXDN: 6.25 kHz = -4 dB µV (0.32 µV) at 1% BER DMR: 12.5 kHz = -4.5 dB µV (0.30 µV) at 5% BER DMR: 12.5 kHz = -1 dB µV (0.45 µV) at 1% BER | Sensitivity (Digital) | |
| 65 dB | Spurious Response Rejection |
| Transmitter Specifications | ||
|---|---|---|
| 5 W / 4 W / 1 W | RF Power Output | |
| 3 % | Audio Distortion | |
| Analog @ 25 kHz: 45 dB Analog @ 20 kHz: 45 dB Analog @ 12.5 kHz: 40 dB | FM Hum & Noise | |
| -36 dBm ≤ 1 Ghz -30 dBm > 1 Ghz | Spurious Emission (EN) |
SUPPORT
support_nx-3220
| Support | ||
|---|---|---|
| Download brochure | ||
| persian |
Accessories
| Battery / Charger | Antenna | Headset | extra |
|---|---|---|---|
 |  |  |  |
| KNB-55L Li-Ion Battery – 1480 mAh | KRA-22 VHF Low Profile Helical Antenna | EMC-11W Clip microphone with Earphone and PTT | KLH-206PGDE Leather Case with Swivel Belt Loop and D-ring |
 |  |  |  |
| KNB-56N Ni-MH Battery – 1400 mAh | KRA-26 VHF Helical Antenna | EMC-12W Clip microphone with Earphone and PTT (VOX ready) | KLH-207NCDE Nylon Case with Metal Clip and D-ring |
 |  |  |  |
| KNB-57L Li-Ion Battery – 2000 mAh | KRA-41M VHF Stubby Antenna | KEP-2 Earphone kit | KMC-45D Heavy Duty Speaker/Microphone |
 |  |  |
|
| KNB-78L Li-Ion Battery Pack – 2860 mAh | KHS-10D-BH Heavy Duty Noise Reduction Headset (behind-the-head / 2-pin) | KBH-11 Belt Clip |
|
 |  |  |
|
| KBP-5 Dry Cell case – 6 x AA cells | KHS-10D-OH Heavy Duty Noise Reduction Headset (over-the-head / 2-pin) | KPG-22U USB Programming Cable – Twin-jack Connector |
|
 |  | ||
| KSC-256 Battery Charger – Rapid 6-Way | KHS-22 Lightweight Headset with Boom Microphone & PTT | ||
 |  | ||
| KVC-14 Mobile Vehicle Charger 12 V (1 piece) | KHS-35F Boom Microphone with “D” Earpiece and PTT | ||
 | |||
| KHS-38SW2P Single Wire 2-Pin with PTT | |||
 | |||
| KHS-40TW2P Twin Wire 2-Pin with PTT | |||
 | |||
| KHS-7 Single Muffeadset with Boom Microphone | |||
 | |||
| KHS-7A Single Muff Headset with Boom Microphone & PTT | |||
 | |||
| KHS-8BL Two-wire Palm Microphone with Earpiece | |||
 | |||
| KHS-8NC Two-wire Palm Microphone (Noise Cancelling) with Earpiece | |||
 | |||
| KHS-9BL Three-wire Lapel Microphone with Earpiece |
