NXR-710E
NEXEDGE VHF Digital Conventional/Analogue Repeater/Base Station
Features
SPECIFICATIONS
SUPPORT
Accessories
Features
| Key Features | |
|---|---|
| NXDN Digital Air Interface | |
| AMBE+2 Vocoder for Natural Sounding Digital Voice | |
| Operates in NXDN Digital Conventional and FM Analogue Modes, even on the same channel | |
| Autosenses Received Mode (Digital or Analogue) | |
| 30 Channel Scanning Base Station (Conventional Mode) | |
| Digital – Single-Site Trunking (future upgrade) | |
| Multi-Site IP Network Mode (via KTI-3 option) |
SPECIFICATIONS
| Supplied With | |
|---|---|
| YES | Cushion |
| YES | D.C. Cable |
| YES | Fuse |
| YES | Handle |
| Yes, English, Spanish, French, Italian, German, Dutch, Turkish & Greek | Instruction Manual |
| YES | Screw Set |
| Base Station & Repeater Features | ||
|---|---|---|
| Yes | 16 CTCSS/DCS Repeater Controller Built-In | |
| Yes | 19″ Rack Mount Design | |
| Less Than 2.5% | Audio Distortion | |
| Yes | “Base Station” or “Repeater” Mode Operation | |
| Yes | Base Station Features | |
| Yes | CW ID | |
| Yes | DTMF AUX Input Monitoring | |
| Yes | DTMF AUX Output Control | |
| Yes | DTMF Front Panel PF-Key Control | |
| Yes | EIA Voter Tone Generation | |
| Yes | External FM Controller Interface | |
| Yes | External MPT Controller Interface | |
| Yes | Flash ROM for Future Upgrades | |
| Yes | Front Mounted Speaker | |
| Yes | Full-Duplex Operation | |
| Yes | Hang Timer | |
| Yes | LED Display & Indicators | |
| Yes | Microphone Jack on Front Panel | |
| Yes | Program/Modem Interface | |
| Yes | Programmable AUX I/Os | |
| 6 | Programmable Function Keys | |
| Yes | Remote Termination Interface | |
| Yes | Repeater Features | |
| Yes | Time-Out Timer | |
| Yes | Volume Control on Front Panel | |
| Yes | Windows Programming and Tuning Software |
| NEXEDGE Features | ||
|---|---|---|
| Yes | FM Analogue Conventional Included | |
| Yes | NXDN Conventional Included |
| NEXEDGE Base+Repeater Features | ||
|---|---|---|
| Yes | 16 RAN Repeater Controller Built-In – Conventional Mode | |
| Yes, From V2.00 Firmware | Conventional IP Interface | |
| Yes | External Reference-Frequency Connection | |
| Yes | GIDs Per Site | |
| 1000 in Conventional Mode | Mixed FM/Digital Operation – Conventional Mode | |
| Yes | NXDN Scrambler built-In | |
| 1000 in Conventional Mode | UIDs Per Site |
| Applicable Standards | ||
|---|---|---|
| Yes | R&TTE: EN300 086, 300 113, 300 219, 301 489, 301 166 | |
| Yes | EU Safety: EN60065, 60950-1, 60215 | |
| Yes | Measurement – EIA Standards | |
| Yes | Measurement – EN Standards |
| Technical Specifications | ||
|---|---|---|
| 136 – 174 MHz | Frequency Range | |
| 30 | Number of Channels | |
| 38 MHz | Channel Frequency Spread | |
| Analogue : 25 kHz/20 kHz/12.5 kHz | Channel Spacing | |
| 12.5 kHz/6.25 kHz | Channel Spacing – Digital – Wide/Narrow | |
| Yes | Antenna Impedance – 50 Ohm | |
| RX: BNC TX: N | Antenna Connector | |
| Stand-By: 0.5 A Receive: 1.0 A Transmit: 11.0 A | Current Drain | |
| 100% at 25 Watts, 50% at maximum power | Duty Cycle | |
| ± 0.5 ppm (-30 °C to + 60 °C) | Frequency Stability | |
| -30 °C to + 60 °C | Operating Temperature Range | |
| 13.6 V DC (10.8 ~ 15.6 V DC) | Operating Voltage | |
| 2.5 kHz/3.125 kHz | PLL Channel Steps | |
| 483 x 88 x 340 mm – Projections not included – | Dimensions | |
| 9.7 kg | Weight (net) |
| Receiver Specifications |
||
|---|---|---|
| Analogue: 83 dB at 25 kHz 81 dB at 20 kHz 77 dB at 12.5 kHz | Adjacent Channel Selectivity | |
| 4 Watts with less than 5% distortion | Audio Output | |
| Analogue: 72 dB | Intermodulation | |
| Digital: 3% BER: 0.28 µV at 12.5 kHz 0.22 µV at 6.25 kHz. 1% BER: -4 dB µV at 12.5 kHz -6 dB µV at 6.25 kHz. | Sensitivity | |
| 0.28 µV | Sensitivity – EIA 12 dB SINAD | |
| -3dB µV | Sensitivity – EN 20 dB SINAD | |
| 85 dB | Spurious Reponse Rejection (Analogue) |
| Transmitter Specifications | ||
|---|---|---|
| 5 W – 40 W | RF Power Output | |
| 55 dB at 25 kHz 53 dB at 20 kHz 50 dB at 12.5 kHz | FM Noise (EIA) | |
| Less than 1% | Modulation Distortion | |
| Analogue: ± 5.0 kHz at 25 kHz ± 4.0 kHz at 20 kHz ± 2.5 kHz at 12.5 kHz | Modulation Limiting | |
| -36 dBm ≤ 1 GHz -30 dBm > 1 GHz | Spurious Emission (EN) |
SUPPORT
support_nxR-710
| Support | ||
|---|---|---|
| Download brochure | ||
| persian |
Accessories
| Microphone | Network Interface | programming |
|---|---|---|
 |  |  |

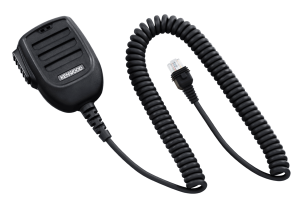

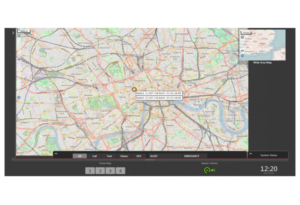

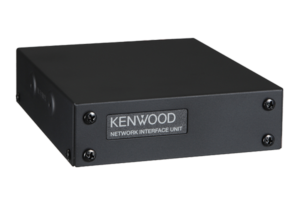

| KMC-60 Standard Hand Microphone | KTI-3M NEXEDGE Network Interface Unit | KAS-20 AVL and Dispatch Software |
 | ||

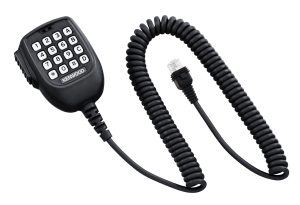

| KMC-62 Hand Microphone with Keypad | KPG-111D Windows programming software for NX-200/NX-300/NX-700/NX-800 E & K |
|
 | ||

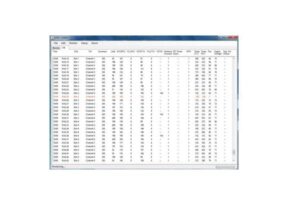

| KMC-65 Basic Microphone | KPG-129D Windows programming software for NXR-710/810 E & K versions |
|
 |  |
|

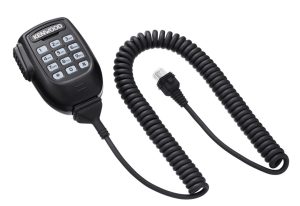

| KMC-66 Keypad Microphone | KPG-149RM NEXEDGE Repeater Monitoring Software – Windows |
|
 |  |
|

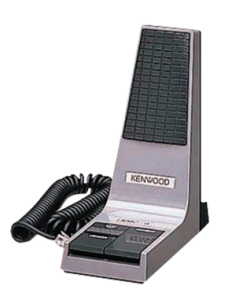

| KMC-9C Desk Microphone | KPG-46X True-USB Programming Cable – 8 Pin Modular |
